3D MECHANICAL LAYOUT
2025
Autonomous Robot
A mechanical design exercise focused on planning a compact autonomous robot before fabrication, with close attention to the space needed by motors, wheels, structure, and electronics.
PROJECT DETAILS
ROBOTICSCADELECTRONICSMECHANICAL DESIGN
What I built

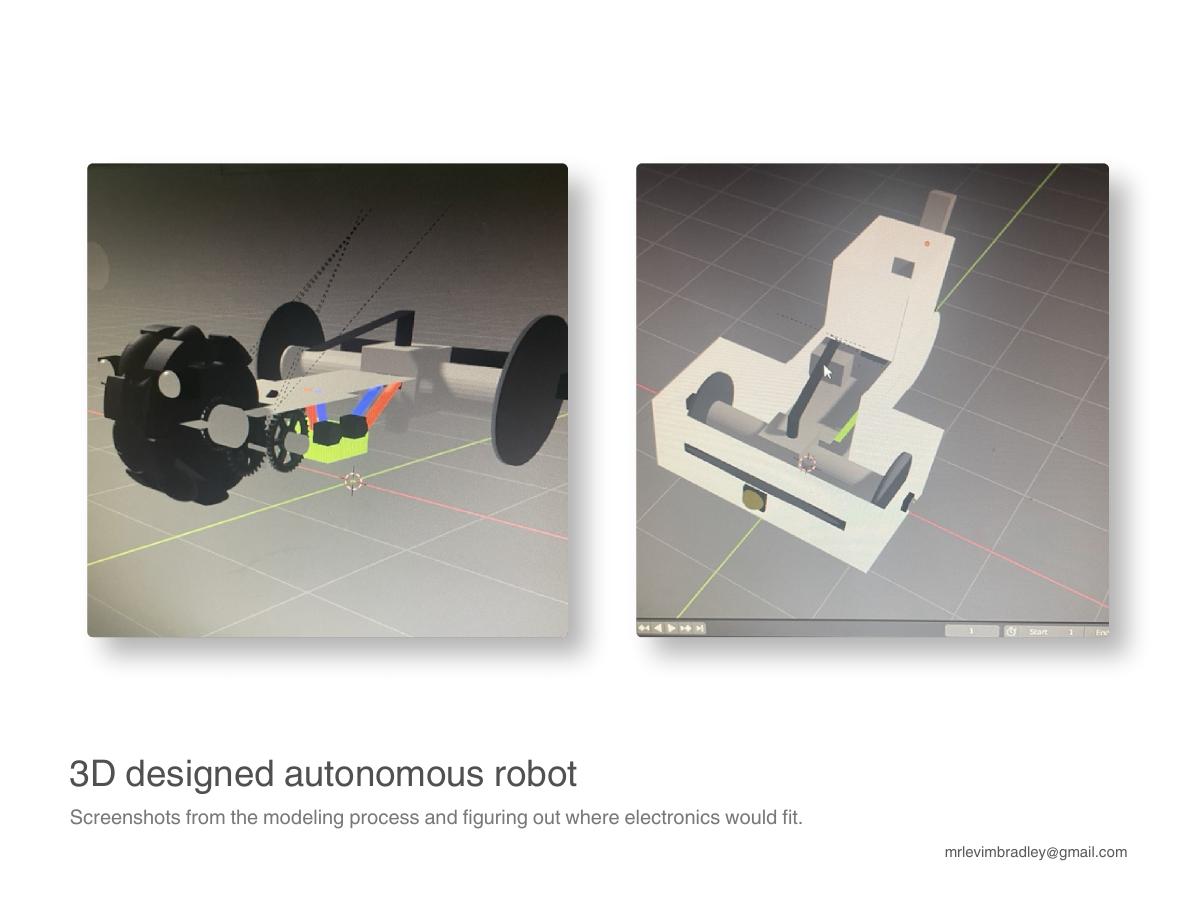

- Modeled the drivetrain, frame, wheels, and internal electronics volume.
- Used iterative CAD layouts to identify fit and clearance problems early.
- Balanced mechanical structure with practical access to electrical components.
